FG, FGR 端面溝槽 / 端面圓溝槽

商品編號:FG, FGR
█特色:内徑溝槽 █適用材質:低碳鋼、碳素鋼、合金鋼,鑄鐵,不鏽鋼等。

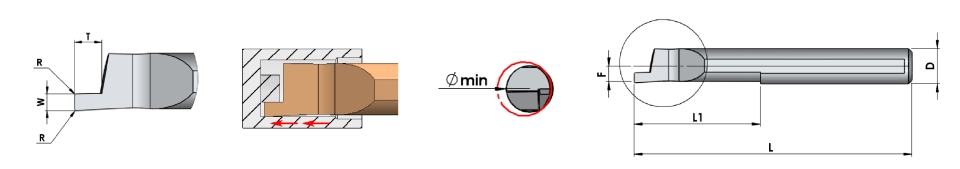

  • 車刀規格圖_Face Grooving

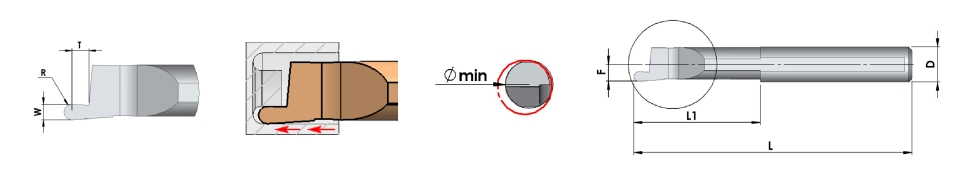

    車刀規格圖_Face Grooving Radius
    MODE D Ø min F L L1 W R T
    FG075-40.010-15 R/L 4 4 1.8 50 15
    0.75
    0.1 1.2
    FG100-40.010-15 R/L 4 4 1.8 50 15 1.00 0.1 1.5
    FG150-40.010-15 R/L 4 4 1.8 50 15 1.50 0.1 2.6
    FG075-50.010-22 R/L 6 5 2.3 50 22 0.75 0.1 1.2
    FG100-50.010-22 R/L 6 5 2.3 50 22 1.00 0.1 1.5
    FG150-50.010-22 R/L 6 5 2.3 50 22 1.50 0.1 2.5
    FG200-50.010-22 R/L 6 5 2.3 50 22 2.00 0.1 3.6
    FG100-60.010-22R/L 6 6 2.8 50 22 1.00 0.1 1.5
    FG150-60.010-22R/L 6 6 2.8 50 22 1.50 0.1 2.5
    FG200-60.010-22 R/L 6 6 2.8 50 22 2.00 0.1 3.0
    FG250-60.010-22 R/L 6 6 2.8 50 22 2.50 0.1 4.6
    FG250-80.010-22 R/L 8 8 3.8 60 22 2.50 0.1 4.6
    FGR100-40.050-15 R/L 4 4 1.8 50 15 1.0 0.50 1.2
    FGR150-40.075-15 R/L 4 4 1.8 50 15 1.5 0.75 1.5
    FGR100-50.050-22 R/L 6 5 2.3 50 22 1.0 0.50 1.2
    FGR150-50.075-22 R/L 6 5 2.3 50 22 1.5 0.75 1.5
    FGR200-50.100-22 R/L 6 5 2.3 50 22 2.0 1.00 2.5
    FGR100-60.050-22 R/L 6 6 2.8 50 22 1.0 0.50 1.2
    FGR150-60.075-22R/L 6 6 2.8 50 22 1.5 0.72 1.5
    FGR200-60.100-22R/L 6 6 2.8 50 22 2.0 1.00 2.5
