PF22 仿形 & 搪孔

商品編號:PF22
█特色:仿形 & 搪孔 █適用材質:低碳鋼、碳素鋼、合金鋼,鑄鐵,不鏽鋼等。

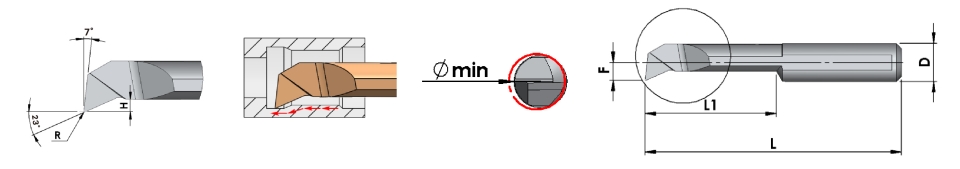

  • 車刀規格圖_Profiling & Boring
    MODE D Ø min F L L1 R H
    PF22-10.005-03 R/L 4 1 0.4 50 3 0.05 0.2
    PF22-10.005-05 R/L 4 1 0.4 50 5 0.05 0.2
    PF22-20.005-06 R/L 4 2 0.8 50 6 0.05 0.4
    PF22-20.005-10 R/L 4 2 0.8 50 10 0.05 0.4
    PF22-20.005-14 R/L 4 2 0.8 50 14 0.05 0.4
    PF22-30.010-09 R/L 4 3 1.3 50 9 0.1 0.6
    PF22-30.010-15 R/L 4 3 1.3 50 15 0.1 0.6
    PF22-30.010-21 R/L 4 3 1.3 50 21 0.1 0.6
    PF22-40.010-12 R/L 4 4 1.8 50 12 0.1 0.8
    PF22-40.010-20 R/L 4 4 1.8 50 20 0.1 0.8
    PF22-40.010-28 R/L 4 4 1.8 60 28 0.1 0.8
    PF22-50.020-15 R/L 6 5 2.3 50 15 0.2 1
    PF22-50.020-25 R/L 6 5 2.3 50 25 0.2 1
    PF22-50.020-30 R/L 6 5 2.3 60 30 0.2 1
    PF22-60.020-18 R/L 6 6 2.8 50 18 0.2 1.2
    PF22-60.020-30 R/L 6 6 2.8 60 30 0.2 1.2
    PF22.60.020-42 R/L 6 6 2.8 75 42 0.2 1.2
    PF22-70.020-21 R/L 8 7 3.3 60 21 0.2 1.4
    PF22-70.020-35 R/L 8 7 3.3 75 35 0.2 1.4
    PF22-70.020-49 R/L 8 7 3.3 100 49 0.2 1.4
    PF22-80.020-24 R/L 8 8 3.8 60 24 0.2 1.6
    PF22-80.020-24 R/L 8 8 3.8 75 40 0.2 1.6
    PF22-80.020-56 R/L 8 8 3.8 100 56 0.2 1.6
