內冷平頭鎢鋼鑽頭 Flat Drills Series With Coolant Hole
►2FD ►4FD ►3FDC ►5FDC
♦尺寸範圍 Size Range: Ø3-16mm
♦鑽尖角度 Point Angle: 180º
詳細規格下載 Spec. Download
切削參數下載 Cutting Condition Download

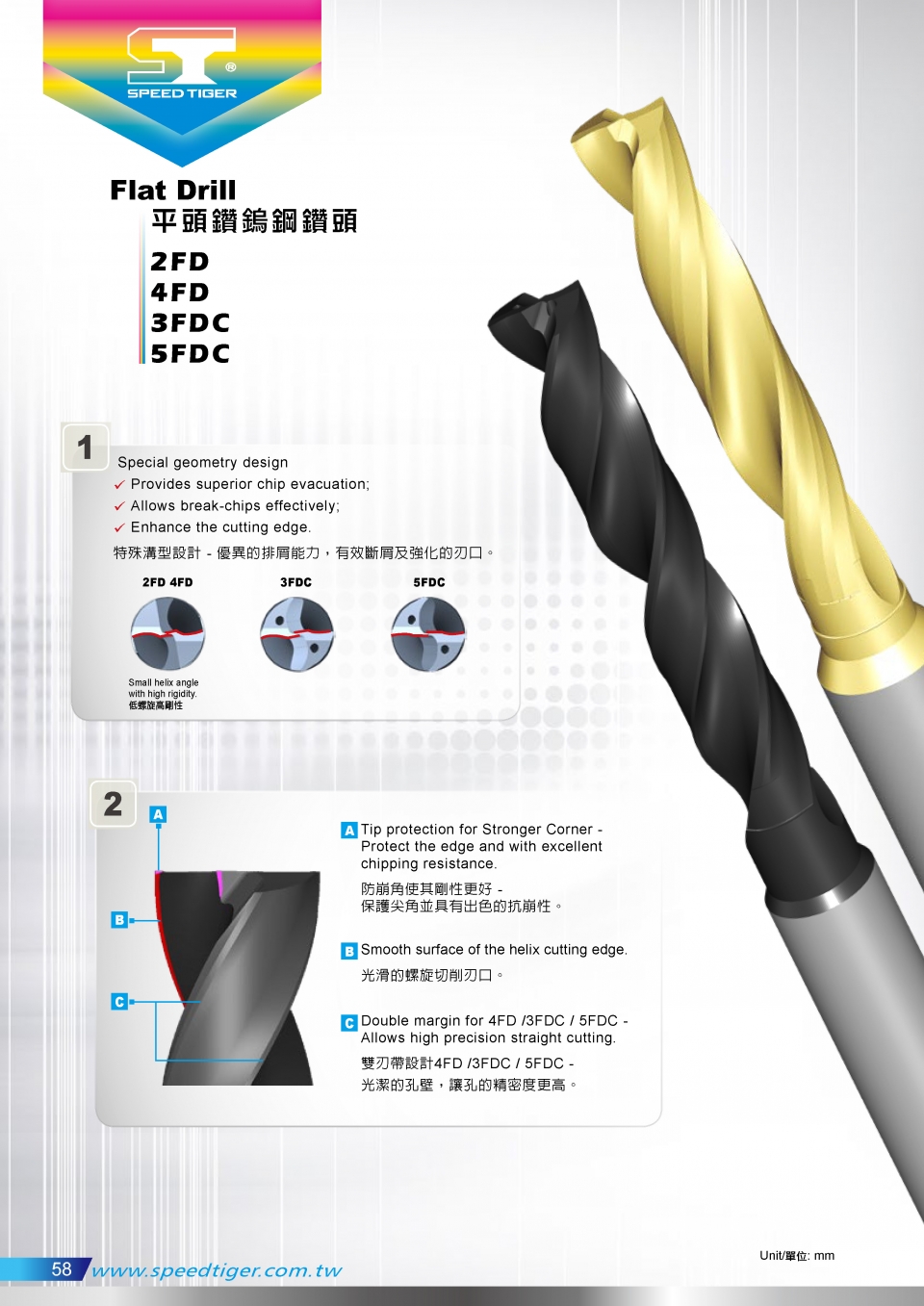

主要特色 Main Feature:
1. 特殊溝型設計Special geometry design優異的排屑能力，有效斷屑及強化的刃口
-Provides superior chip evacuation;
-Allows break-chips effectively;
-Enhance the cutting edge.
2. A. 防崩角使其剛性更好 -保護尖角並具有出色的抗崩性Tip protection for Stronger Corner -Protect the edge and with excellent chipping resistance.
B. 光滑的螺旋切削刃口 Smooth surface of the helix cutting edge.
C. 雙刃帶設計4FD /3FDC / 5FDC -光潔的孔壁，讓孔的精密度更高 Double margin for 4FD /3FDC / 5FDC -Allows high precision straight cutting.

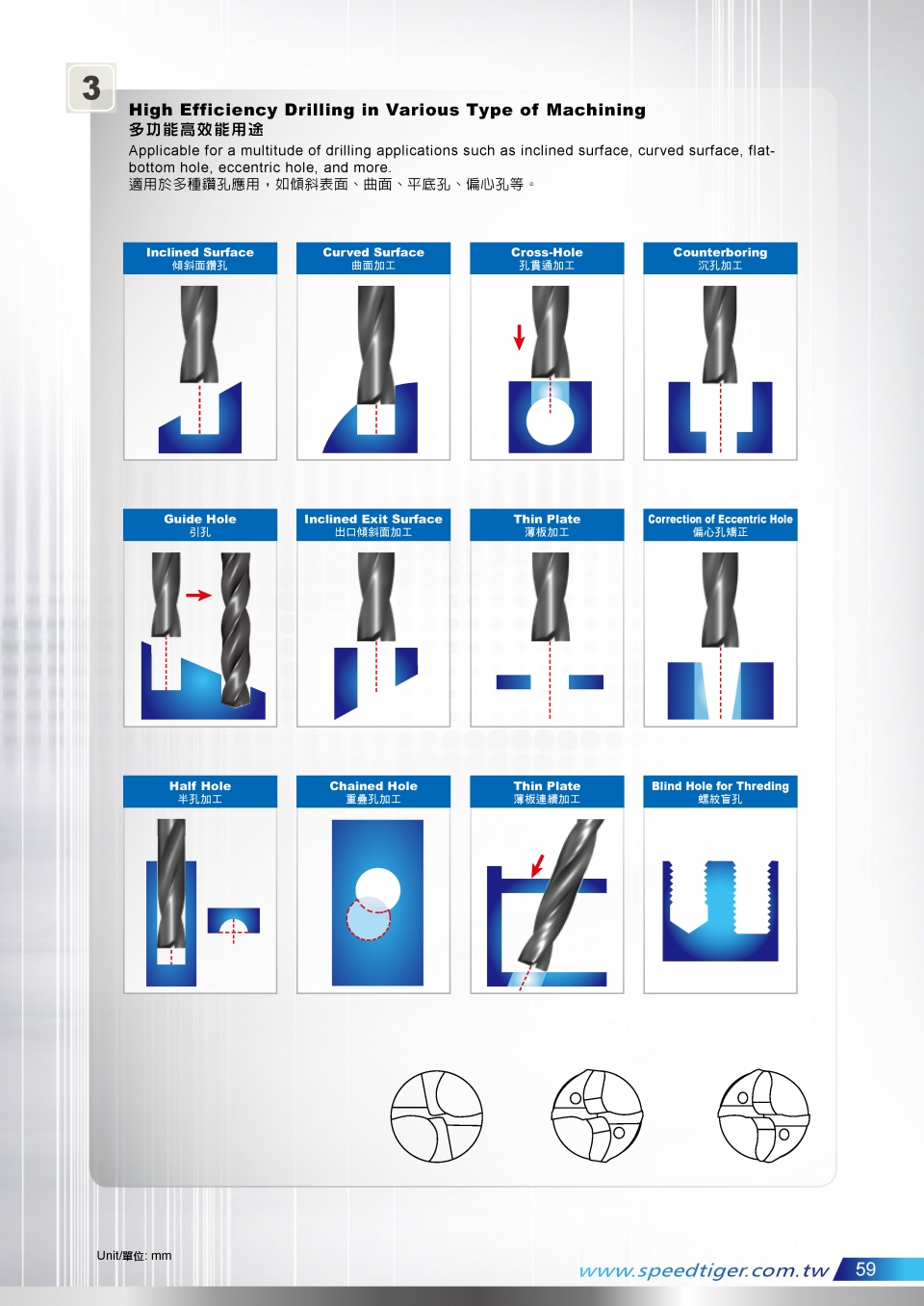

3. 多功能高效能用途High Efficiency Drilling in Various Type of Machining
適用於多種鑽孔應用，如傾斜表面、曲面、平底孔、偏心孔等
Applicable for a multitude of drilling applications such as inclined surface, curved surface, flatbottom
hole, eccentric hole, and more.
應用材質 ApplicationCoating塗層 Carbon steel
碳素鋼
Alloy steel
合金鋼Pre-harden steel
~45HR
預硬鋼~45HRHigh-hardened
~50HRC
高度硬鋼~50HRCHigh-hardened
~55HRC
高度硬鋼~55HRCHigh-hardened
~60HRC
高度硬鋼~60HRCHigh-hardened
~65HRC
高度硬鋼~65HRCStainless steel
不鏽鋼Cast iron鑄鐵 Copper ally
銅合金/銅Alumiunm ally
鋁合金Titanium alloy

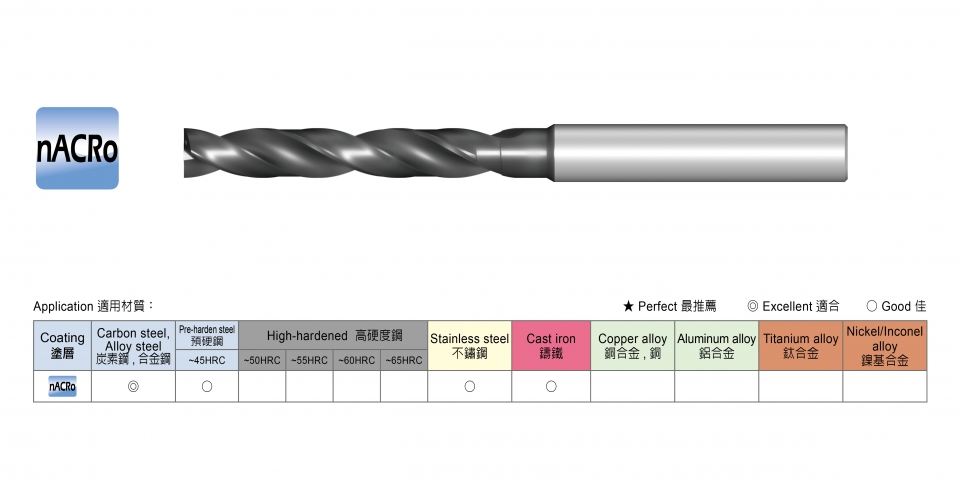

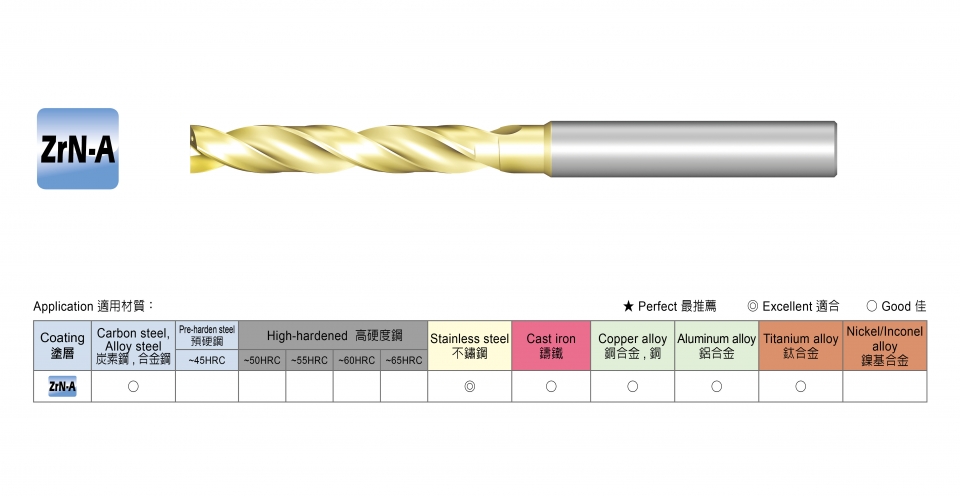

鈦合金/nACRo ◎ ◎ ○ ○ ○ ZrN-A ○ ○ ◎ ○ ○ ○ ○

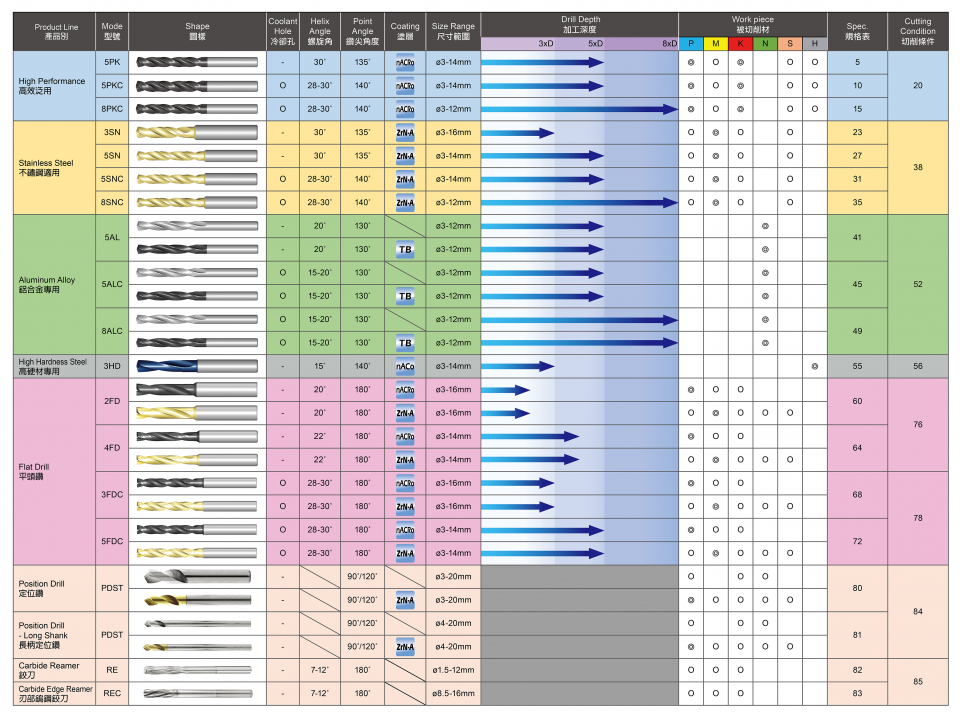

Carbide Drill Index
