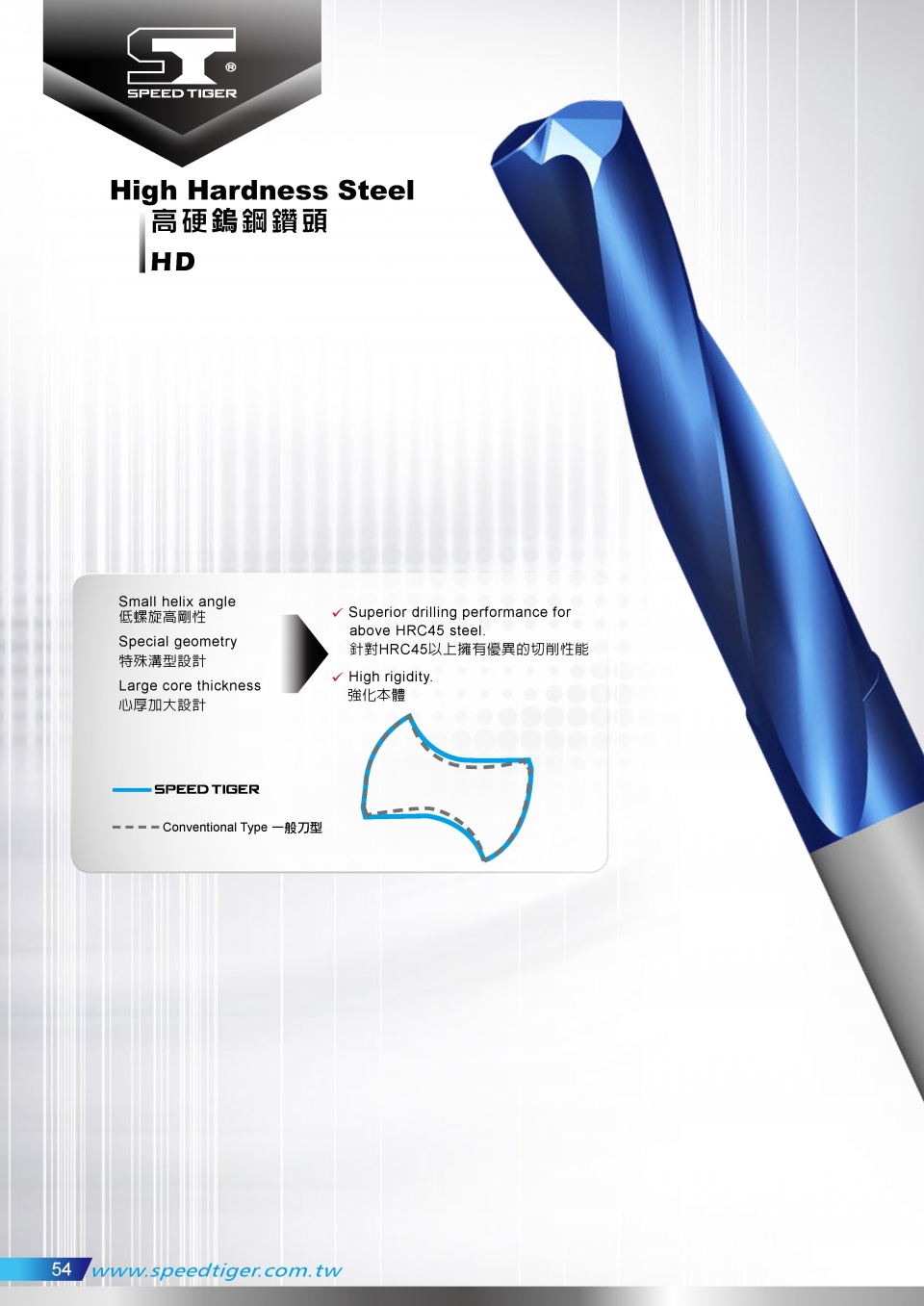

HD 高硬鎢鋼鑽頭 HD Carbide Drill For High Hardness Steel
►HD
♦尺寸範圍 Size Range: Ø3-14mm
♦鑽尖角度 Point Angle: 140º
詳細規格下載 Spec. Download
切削參數下載 Cutting Condition Download
主要特色 Main Feature:
低螺旋高剛性 Small helix angle
特殊溝型設計 Special geometry
心厚加大設計Large core thickness
針對HRC45以上擁有優異的切削性能 Superior drilling performance for above HRC45 steel.
強化本體 High rigidity.

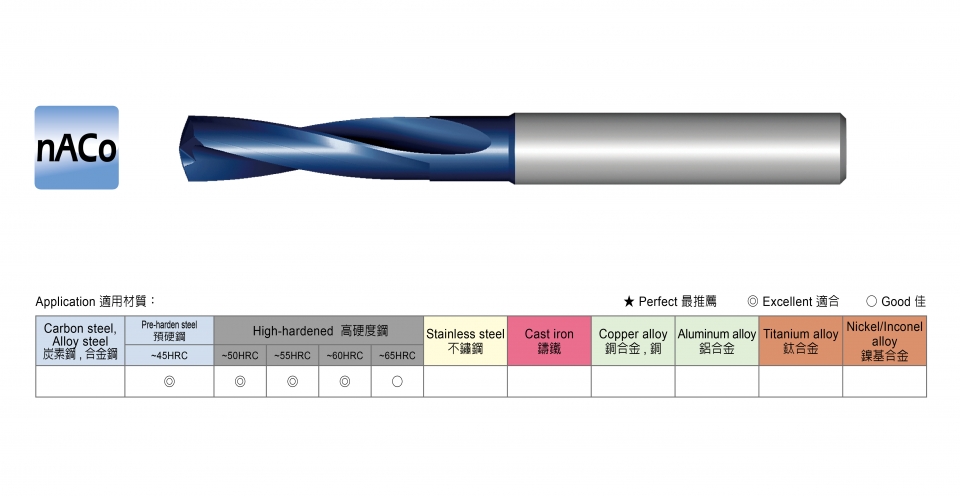

應用材質 ApplicationCarbon steel
碳素鋼
Alloy steel
合金鋼Pre-harden steel
~45HR
預硬鋼~45HRHigh-hardened
~50HRC
高度硬鋼~50HRCHigh-hardened
~55HRC
高度硬鋼~55HRCHigh-hardened
~60HRC
高度硬鋼~60HRCHigh-hardened
~65HRC
高度硬鋼~65HRCStainless steel
不鏽鋼Cast iron鑄鐵 Copper ally
銅合金/銅Alumiunm ally
鋁合金Titanium alloy
Inconel alloy
鈦合金/ 鎳基合金◎ ◎ ◎ ◎ ○

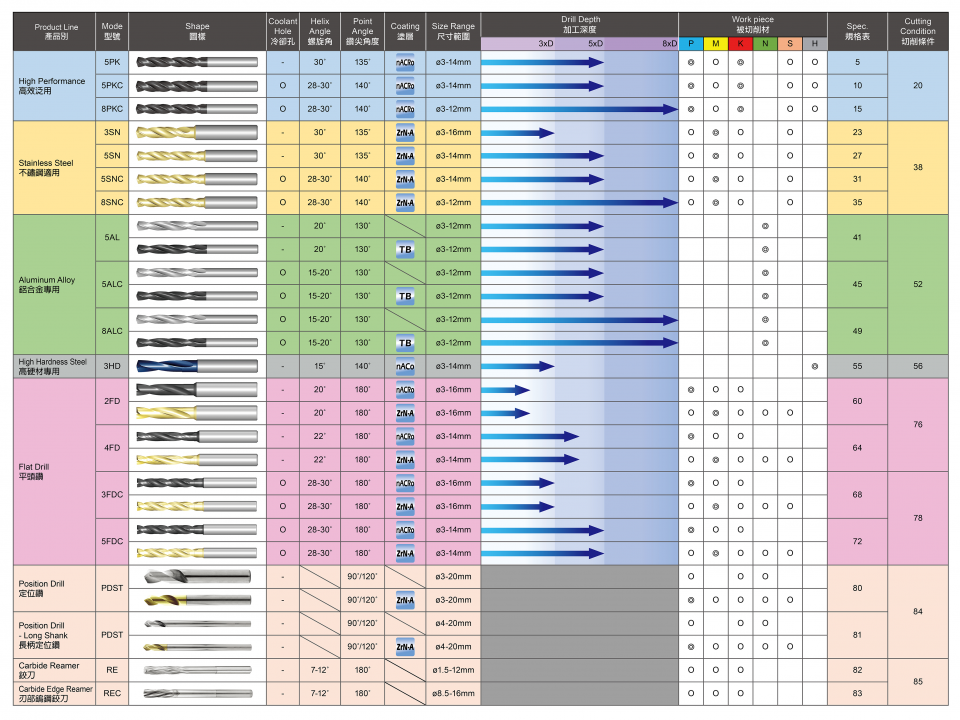

Carbide Drill Index
