內冷鋁合金專用鎢鋼鑽頭 Carbide Drill With Coolant Hole For Aluminum Application
►5AL ►5ALC ►8ALC
♦尺寸範圍 Size Range: Ø3-12mm
♦鑽尖角度 Point Angle: 130º
詳細規格下載 Spec. Download
切削參數下載 Cutting Condition Download

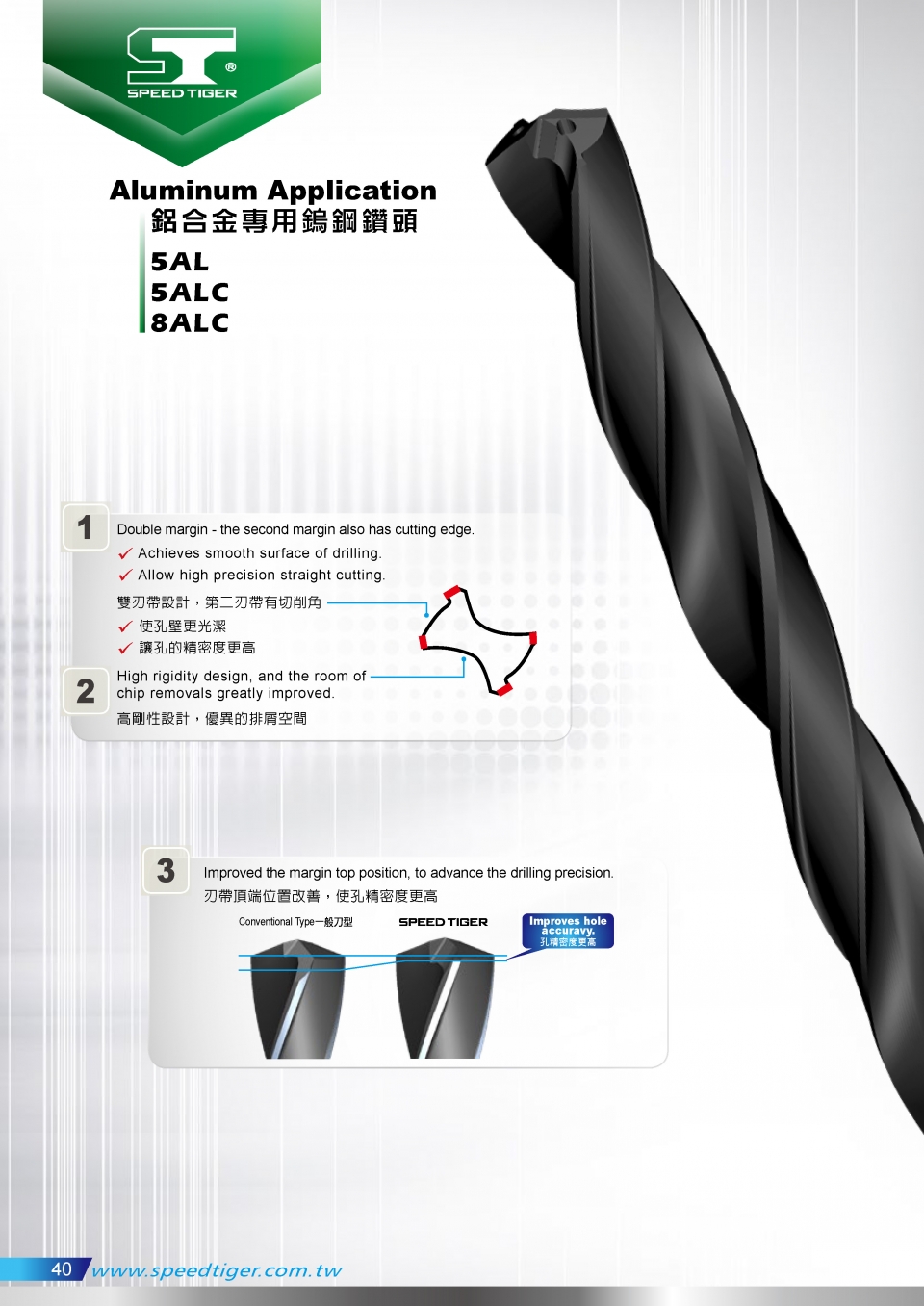

主要特色 Main Feature:
1. 雙刃帶設計Double margin- 第二刃帶有切削角 the second margin also has cutting edge.
- 使孔壁更光潔Achieves smooth surface of drilling.
- 讓孔的精密度更高Allow high precision straight cutting.
2. 高剛性設計，優異的排屑空間 High rigidity design, and the room of chip removals greatly improved.
3. 刃帶頂端位置改善，使孔精密度更高 Improved the margin top position, to advance the drilling precision.

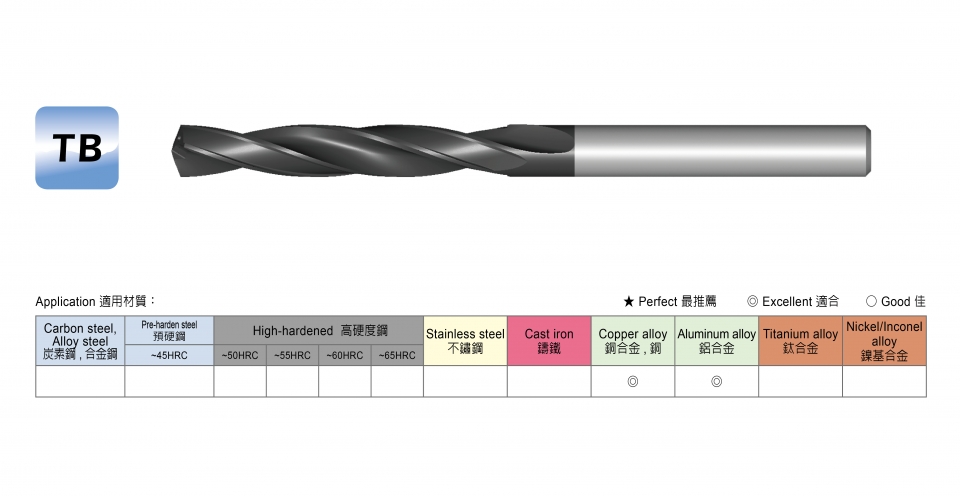

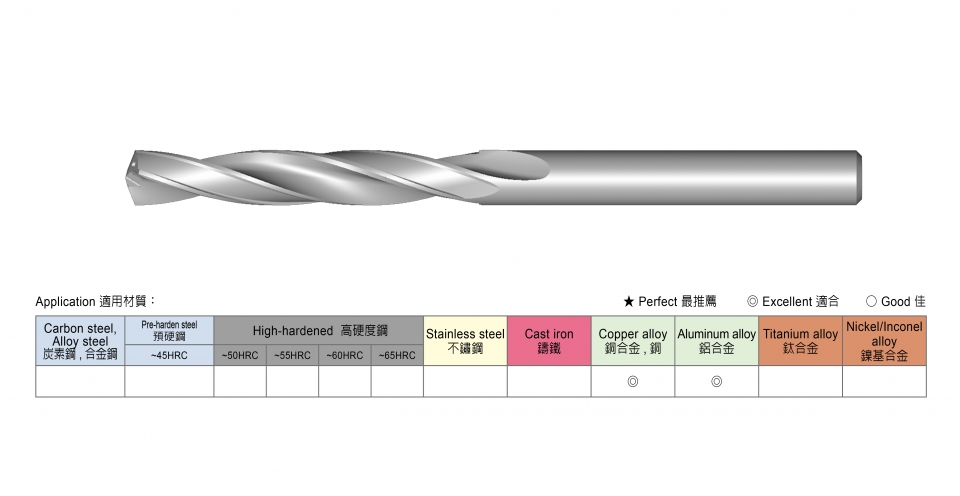

應用材質 ApplicationCarbon steel
碳素鋼
Alloy steel
合金鋼Pre-harden steel
~45HR
預硬鋼~45HRHigh-hardened
~50HRC
高度硬鋼~50HRCHigh-hardened
~55HRC
高度硬鋼~55HRCHigh-hardened
~60HRC
高度硬鋼~60HRCHigh-hardened
~65HRC
高度硬鋼~65HRCStainless steel
不鏽鋼Cast iron鑄鐵 Copper ally
銅合金/銅Alumiunm ally
鋁合金Titanium alloy
Inconel alloy
鈦合金/ 鎳基合金◎ ◎

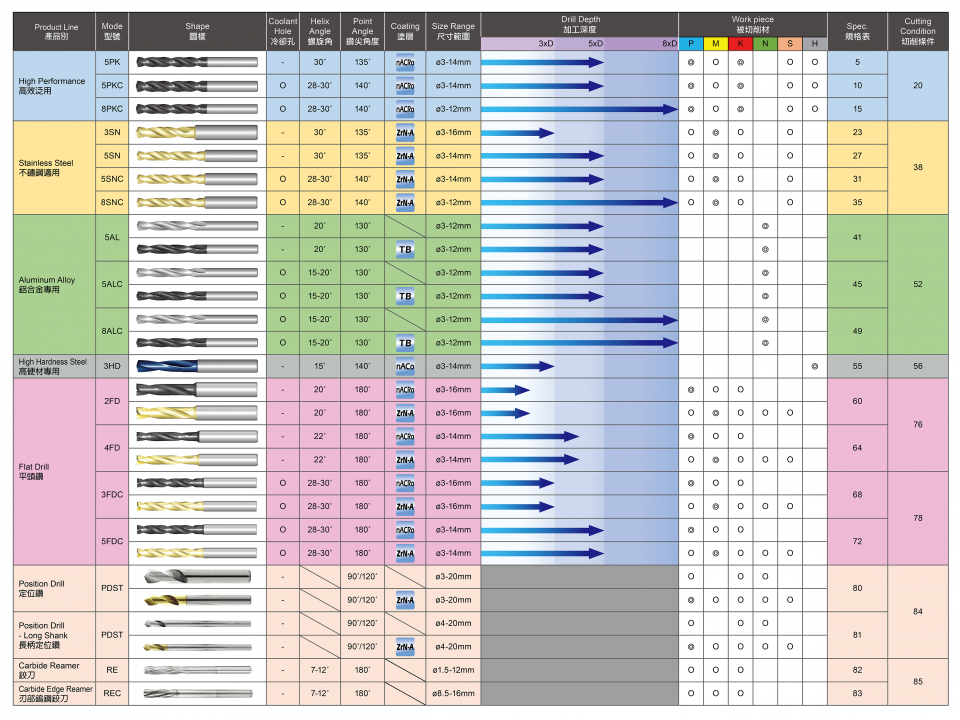

Carbide Drill Index
