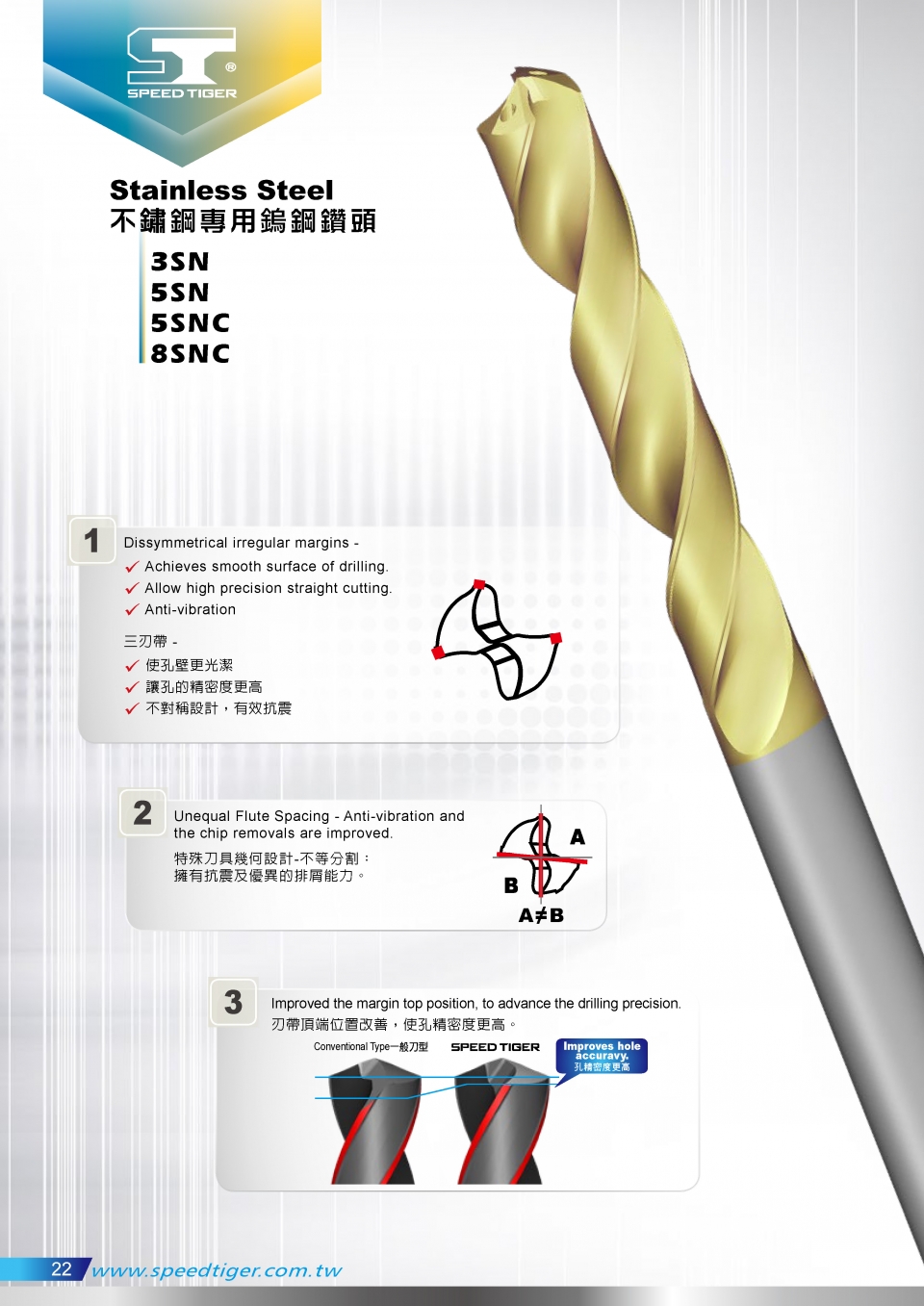

不鏽鋼專用鎢鋼鑽頭 Carbide Drill For Stainless Steel Series
►3SN ►5SN ►5SNC ►8SNC
♦尺寸範圍 Size Range: Ø3-14mm
♦鑽尖角度 Point Angle: 135º
詳細規格下載 Spec. Download
切削參數下載 Cutting Condition Download
主要特色 Main Feature:
1. 三刃帶 Dissymmetrical irregular margins -
- 使孔壁更光潔 Achieves smooth surface of drilling.
- 讓孔的精密度更高 Allow high precision straight cutting.
- 不對稱設計，有效抗震 Anti-vibration
2. 特殊刀具幾何設計不等分割Unequal Flute Spacing：擁有抗震及優異的排屑能力 Anti-vibration and the chip removals are improved.
3. 刃帶頂端位置改善，使孔精密度更高 Improved the margin top position, to advance the drilling precision.

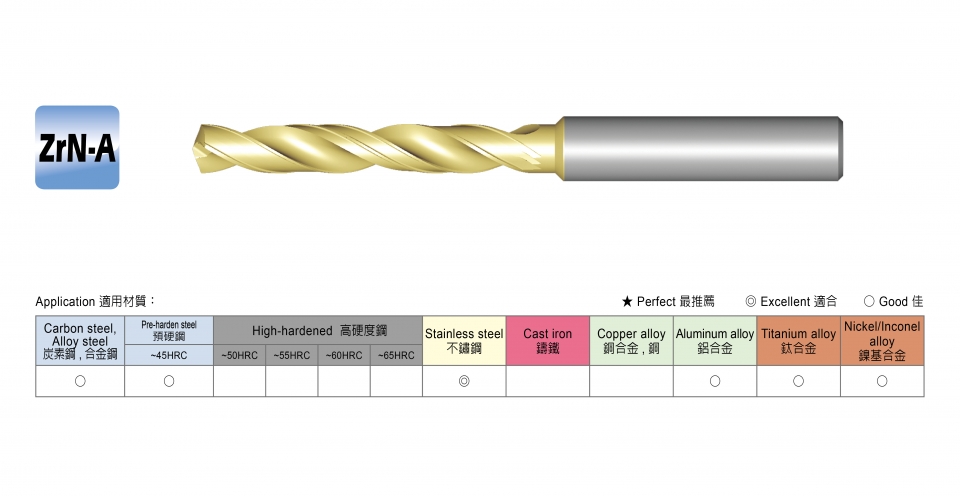

應用材質 ApplicationCarbon steel
碳素鋼
Alloy steel
合金鋼Pre-harden steel
~45HR
預硬鋼~45HRHigh-hardened
~50HRC
高度硬鋼~50HRCHigh-hardened
~55HRC
高度硬鋼~55HRCHigh-hardened
~60HRC
高度硬鋼~60HRCHigh-hardened
~65HRC
高度硬鋼~65HRCStainless steel
不鏽鋼Cast iron鑄鐵 Copper ally
銅合金/銅Alumiunm ally
鋁合金Titanium alloy
Inconel alloy
鈦合金/ 鎳基合金○ ○ ○ ◎ ○ ○

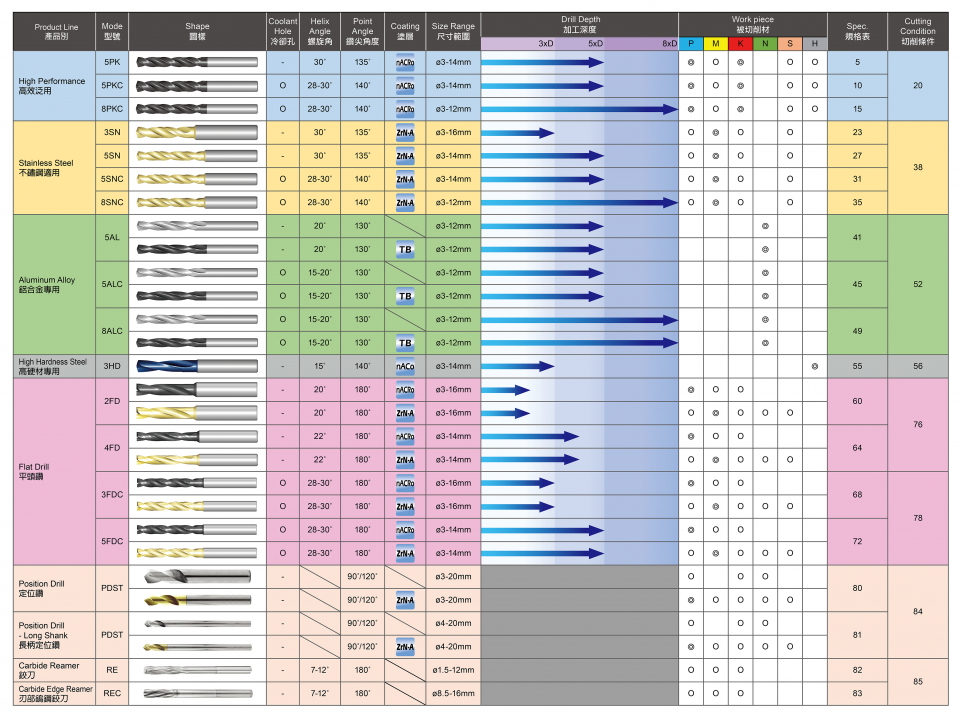

Carbide Drill Index
