PRODUCTS產品系列
-
高效泛用內冷鎢鋼鑽頭 High Performance with Coolant Hole Carbide Drills Series
►5PK ►5PKC ►8PKC
♦尺寸範圍 Size Range: Ø3-12mm
♦鑽尖角度 Point Angle: 140º
詳細規格下載 Spec. Download
切削參數下載 Cutting Condition Download

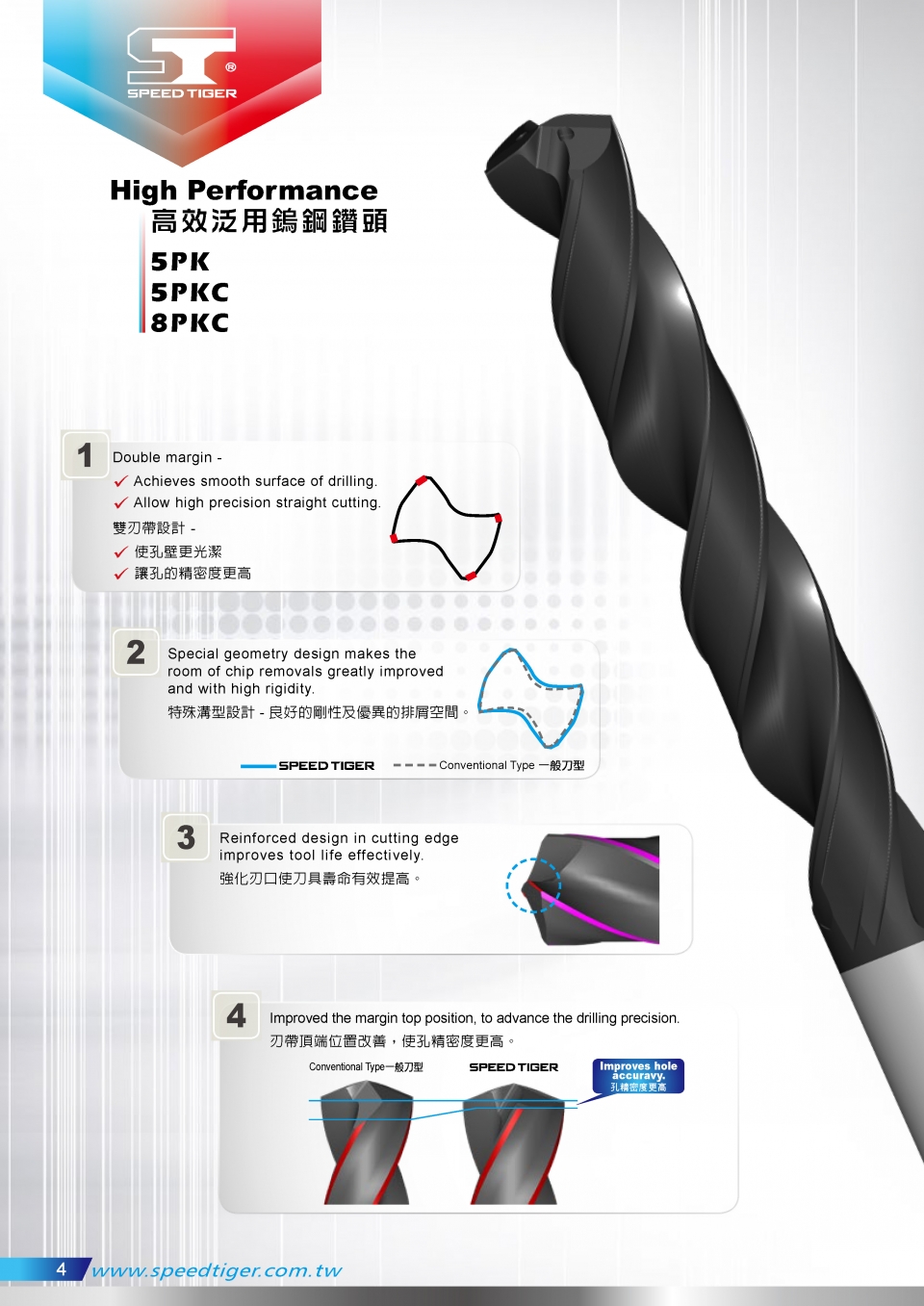

主要特色 Main Feature:
1. 雙刃帶設計 Double margin
- 使孔壁更光潔 Achieves smooth surface of drilling
- 讓孔的精密度更高 Allow high precision straight cutting
2. 特殊溝型設計 - 良好的剛性及優異的排屑空間 special geometry design makes the room of chip removals greatly improved and with high rigidity.
3. 強化刃口使刀具壽命有效提高 Reinforced design in cutting edge improves tool life effectively.
4. 刃帶頂端位置改善，使孔精密度更高 Improved the margin top position, to advance the drilling precision.

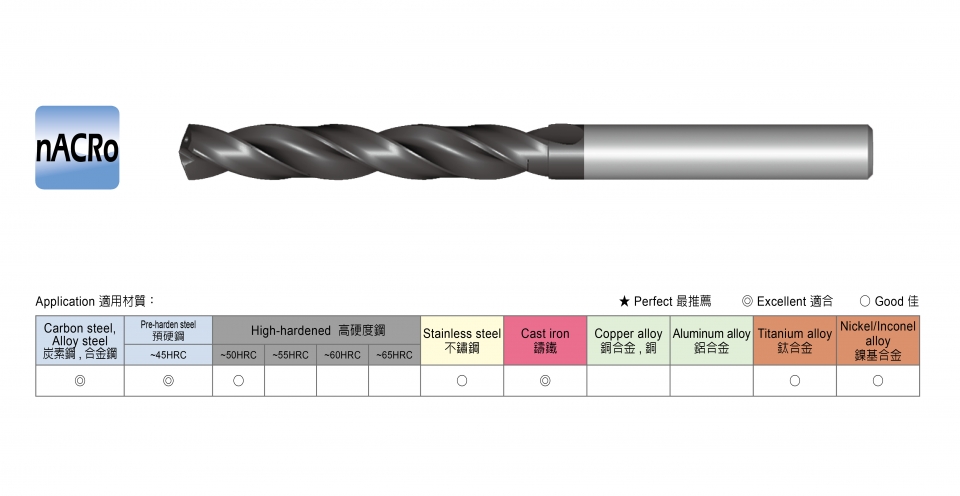

應用材質 ApplicationCarbon steel
碳素鋼
Alloy steel
合金鋼Pre-harden steel
~45HR
預硬鋼~45HRHigh-hardened
~50HRC
高度硬鋼~50HRCHigh-hardened
~55HRC
高度硬鋼~55HRCHigh-hardened
~60HRC
高度硬鋼~60HRCHigh-hardened
~65HRC
高度硬鋼~65HRCStainless steel
不鏽鋼Cast iron鑄鐵 Copper ally
銅合金/銅Alumiunm ally
鋁合金Titanium alloy
Inconel alloy
鈦合金/ 鎳基合金◎ ◎ ○ ○ ◎ ○ ○

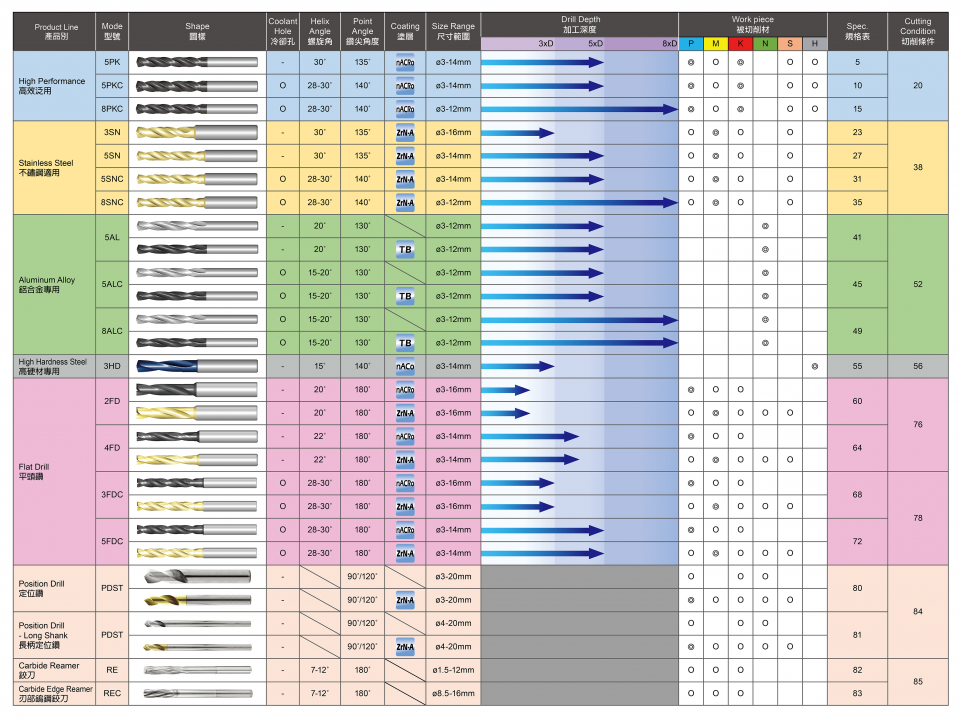

Carbide Drill Index
►其他鑽頭 Looking for others
►鑽頭目錄下載 Carbide Drill Series E-catalogue Download
