600 PLUS 奈米泛用系列 600 PLUS Nano Series General Application
適用材料: ~45HRC/鐵材 / 素碳鋼 / 鑄鐵 / 模具鋼 / 合金鋼 / 鋁合金 / 工具鋼 / 熱處理鋼 / 焊補鋼料
Application: ~45HRC/Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel,Welding Steel.
主要特性:碳化鎢母材韌性高,被覆 AlTiN,耐磨耗。專用於高速 M/C 高硬度高速切削,
能對熱處理模具直接進行粗加工到細加工減少換刀次數,提高機床稼動率,節省模具製作時程。
Micro Grain Carbide that has high toughness, coating AlTiN and wear-resisting, non-general titanium aluminum is specialized in milling on M/C high hardness at a high
speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.

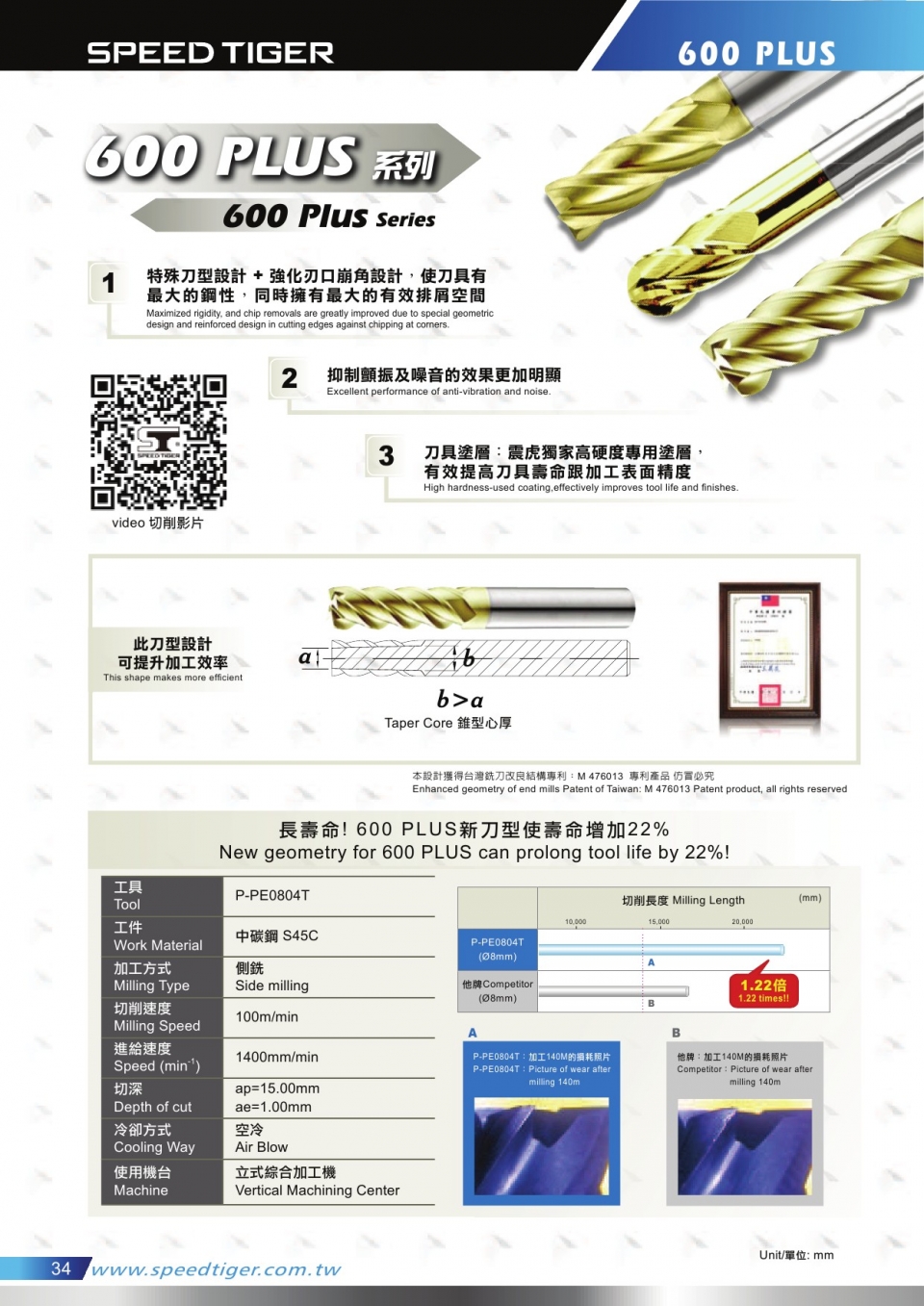

![600PLUS 介紹1 600PLUS 介紹1](../upload/catalog_b/46e478eddd09ef8c3fec3b647a588581.jpg)
產品系列比較表 Comparison
Series
系列 |
Grain Size
粒徑大小 |
Hardness
硬度 (HRC) |
Coating
塗層 |
Application
應用 |
200Nano |
0.2μm |
~65 |
TiSiN |
Super Hard Hardness
超高硬度應用 |
400Nano |
0.4μm |
~60 |
nBS |
High Hardness
高硬度應用 |
600Nano |
0.6μm |
~45 |
AlTiN |
General
一般泛用 |
