200 PLUS 奈米泛用系列 200 PLUS Nano Series General Application
適用材料: ~HRC65/ 鐵材 / 素碳鋼 / 鑄鐵 / 模具鋼 / 合金鋼 / 工具鋼 / 熱處理鋼 / 焊補鋼料
Application: ~HRC65/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel,Welding Steel

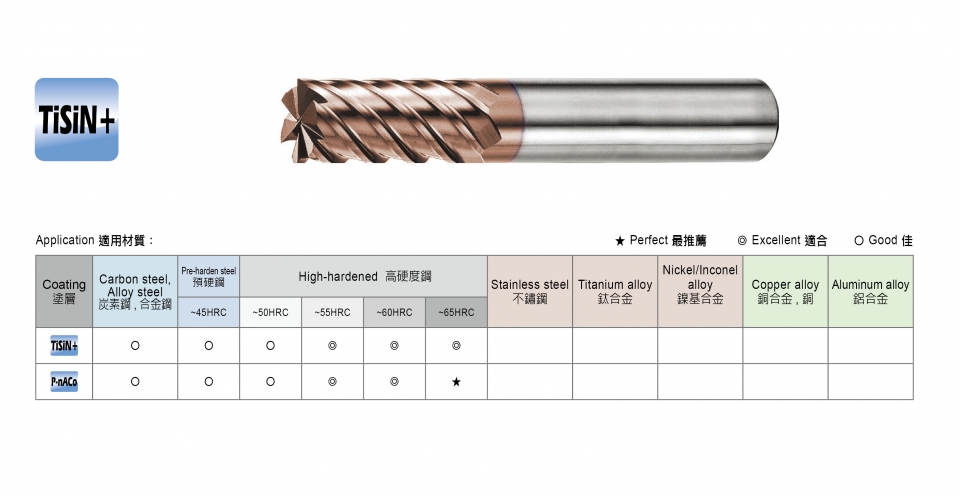

主要特性：奈米微粒碳化鎢母材韌性高，被覆 TiSiN，耐磨耗，非一般鈦鋁。 專用於高速 M/C 高硬度高速切削，能對熱處理模具直接進行粗加工到細加工，減少換刀次數，提高機床稼動率，節省模具製作時程。
Main Character: Super Ultra Fine Micro Grain Carbide that has high toughness, coating TiSiN and wear-resisting, non-general titanium aluminium is specialized in milling on M/C high hardness at a high speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.

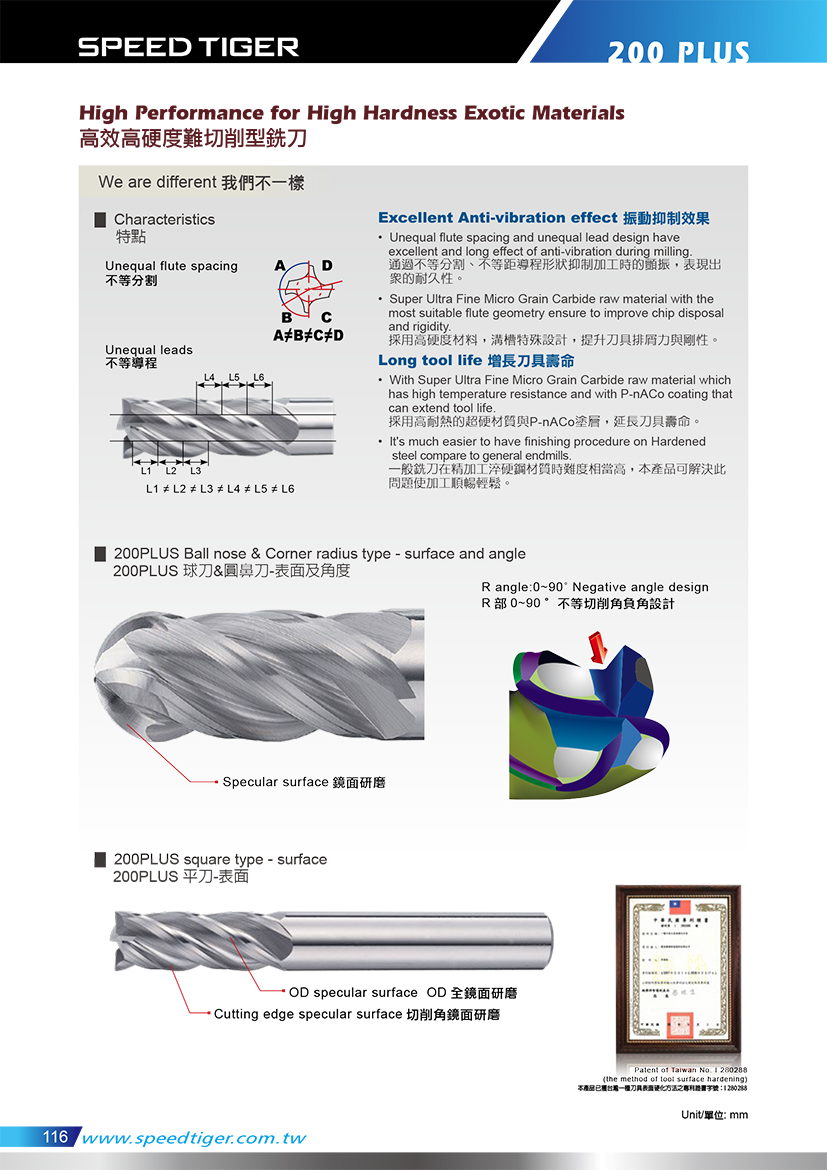

High Performance for High Hardness Exotic Materials高效高硬度難切削型銑刀
特點 Characteristics
- 不等分割 Unequal flute spacing
- 不等導程 Unequal leads
振動抑制效果 Excellent Anti-vibration effect
•通過不等分割、不等距導程形狀抑制加工時的顫振，表現出眾的耐久性。
Unequal flute spacing and unequal lead design have excellent and long effect of anti-vibration during milling.
• 採用高硬度材料，溝槽特殊設計，提升刀具排屑力與剛性。
Super Ultra Fine Micro Grain Carbide raw material with the most suitable flute geometry ensure to improve chip disposal and rigidity.

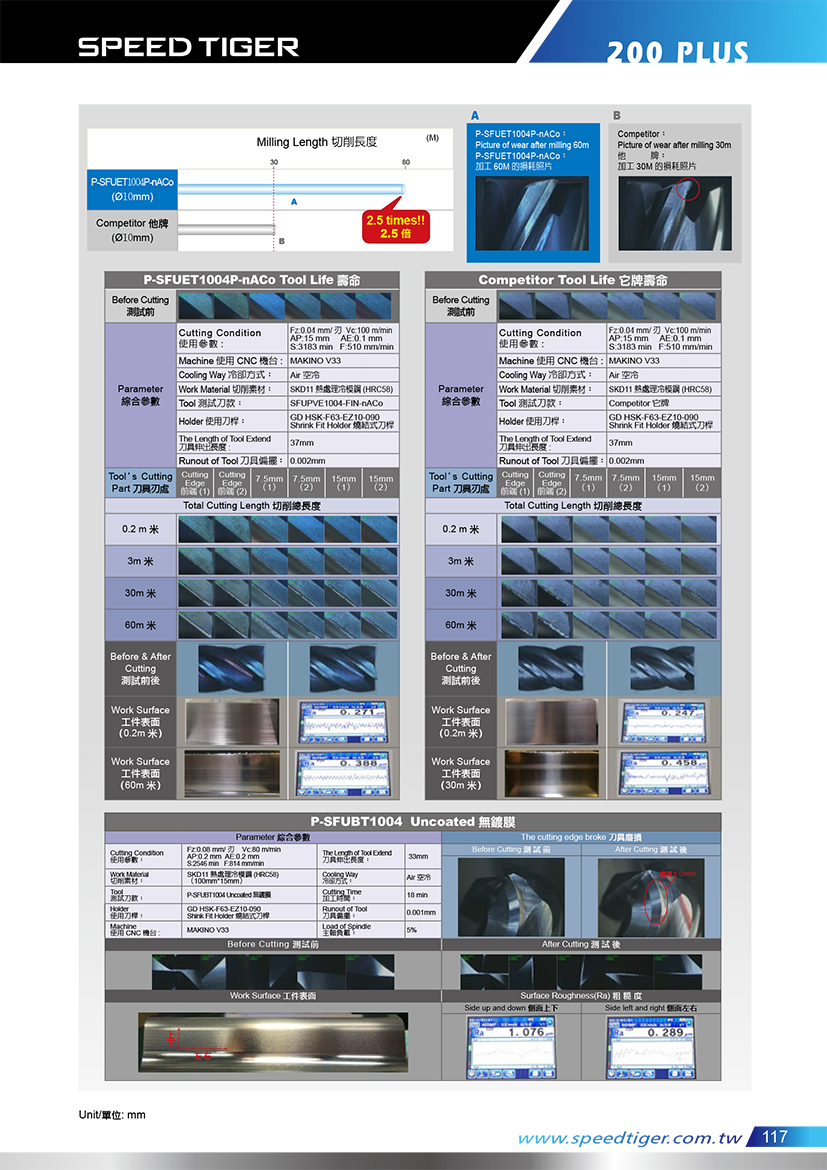

增長刀具壽命 Long tool life

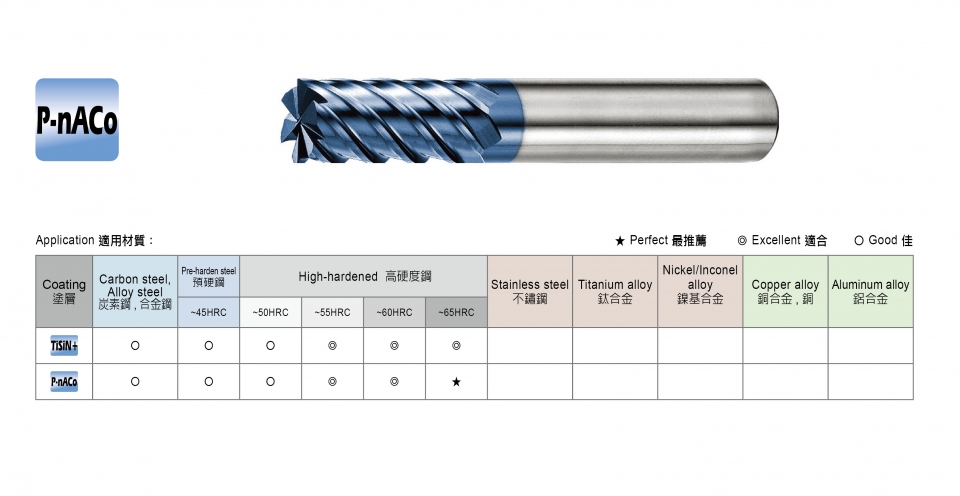

• 採用高耐熱的超硬材質與P-nACo塗層，延長刀具壽命。
With Super Ultra Fine Micro Grain Carbide raw material which has high temperature resistance and with P-nACo coating that can extend tool life.
•一般銑刀在精加工淬硬鋼材質時難度相當高，本產品可解決此問題使加工順暢輕鬆。
It's much easier to have finishing procedure on Hardened steel compare to general endmills.
▊ 200PLUS 球刀&圓鼻刀-表面及角度 200PLUS Ball nose & Corner radius type - surface and angle
•鏡面研磨 Specular surface
•R部0~90゜不等切削角負角設計 R angle:0~90˚ Negative angle design
▊200PLUS 平刀-表面 200PLUS square type - surface
•全鏡面研磨 OD specular surface OD
•切削角鏡面研磨 Cutting edge specular surface
產品系列比較表 ComparisonSeries
系列Grain Size
粒徑大小Hardness
硬度 (HRC)Coating
塗層Application
應用200Nano 0.2μm ~65 TiSiN Super Hard Hardness
超高硬度應用400Nano 0.4μm ~60 nBS High Hardness
高硬度應用600Nano 0.6μm ~50 AlTiN General
一般泛用
