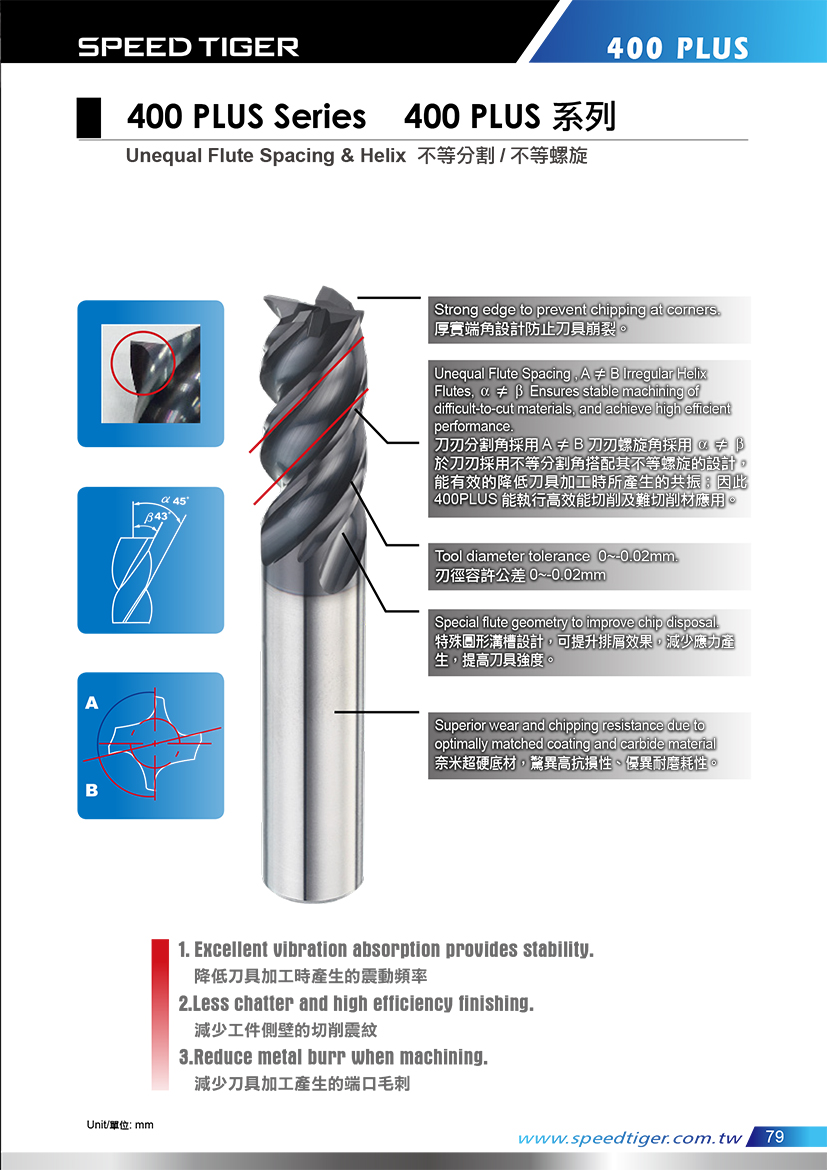

400 PLUS 奈米泛用系列 400 PLUS Nano Series General Application

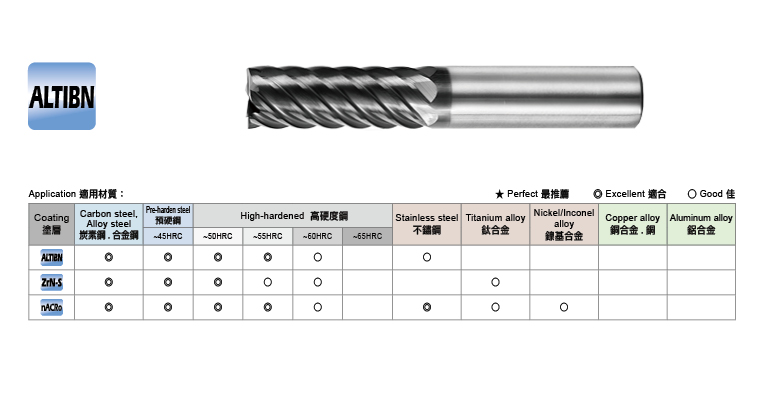

適用材料: ~HRC60/ 鐵材 / 素碳鋼 / 鑄鐵 / 模具鋼 / 合金鋼 / 工具鋼 / 熱處理鋼 / 焊補鋼料
Application: ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel
主要特性：極細微粒碳化鎢母材韌性高，被覆 n.B.S ，耐磨耗，非一般鈦鋁。專用於高速 M/C 高硬度高速切削，能對熱處理模具直接進行粗加工到細加工，減少換刀次數，提高機床稼動率，節省模具製作時程。
Main Character: Ultra Fine Micro Grain Carbide that has high toughness, coating n.B.S and wear-resisting, non-general titanium aluminum is specialized in milling on M/C high hardness at a high speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.
產品系列比較表 Comparison
Series
系列 |
Grain Size
粒徑大小 |
Hardness
硬度 (HRC) |
Coating
塗層 |
Application
應用 |
| 200Nano |
0.2μm |
~65 |
TiSiN |
Super Hard Hardness
超高硬度應用 |
| 400Nano |
0.4μm |
~60 |
nBS |
High Hardness
高硬度應用 |
| 600Nano |
0.6μm |
~50 |
AlTiN |
General
一般泛用 |
