震虎精密科技股份有限公司

PRODUCTS產品系列

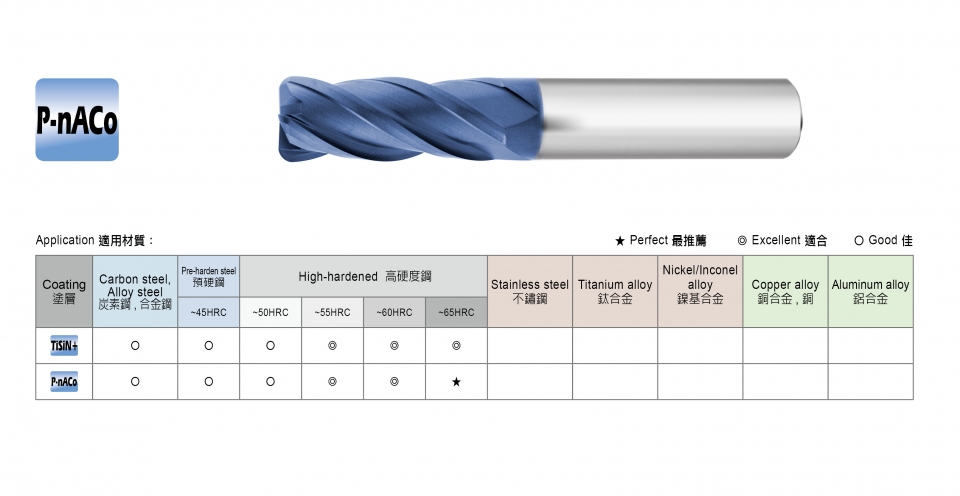

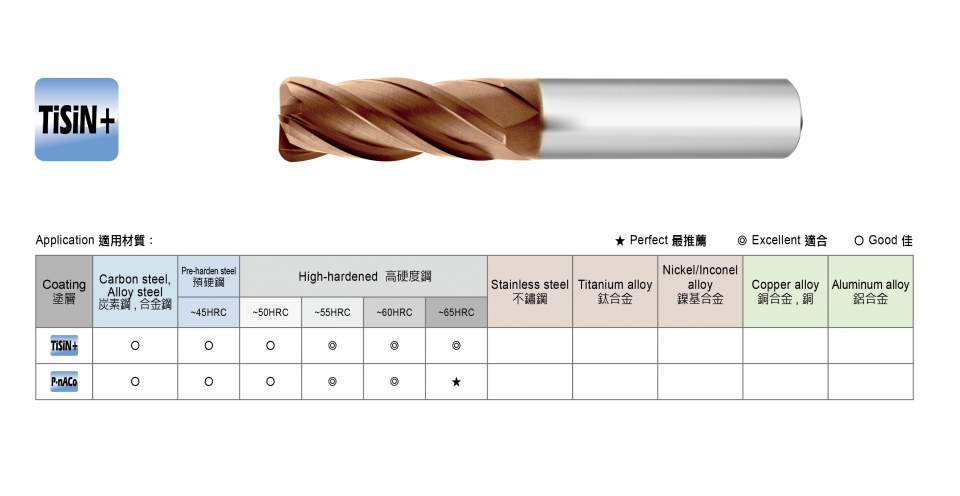

P-SFURTA 4刃圓鼻立銑刀

商品編號:P-SFURTA
200 PLUS 奈米泛用系列,規格:6mm~12mm,塗層:TiSiN+/ P-nACo
  • 詳細規格下載  Spec. Download
    切削參數下載 Cutting Condition Download


    200 PLUS 奈米泛用系列  200 PLUS Nano Series General Application

    適用材料: ~HRC65/ 鐵材 / 素碳鋼 / 鑄鐵 / 模具鋼 / 合金鋼 / 工具鋼 / 熱處理鋼 / 焊補鋼料
    Application:  ~HRC65/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel,Welding Steel

    主要特性:奈米微粒碳化鎢母材韌性高,被覆 TiSiN,耐磨耗,非一般鈦鋁。 專用於高速 M/C 高硬度高速切削,能對熱處理模具直接進行粗加工到細加工,減少換刀次數,提高機床稼動率,節省模具製作時程。
    Main Character: Super Ultra Fine Micro Grain Carbide that has high toughness, coating TiSiN and wear-resisting, non-general titanium aluminium is specialized in milling on M/C high hardness at a high speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.
    108_ST_03-1-N-2
    108_ST_03-1-N-3

    產品系列比較表 Comparison
    Series
    系列
    Grain Size
    粒徑大小
    Hardness
    硬度 (HRC)
    Coating
    塗層
    Application
    應用
    200Nano 0.2μm ~65 TiSiN Super Hard Hardness
    超高硬度應用
    400Nano 0.4μm ~60 nBS High Hardness
    高硬度應用
    600Nano 0.6μm ~50 AlTiN General
    一般泛用
