APPLICATION應用索引

P-UMIE 2刃微小徑立銑刀

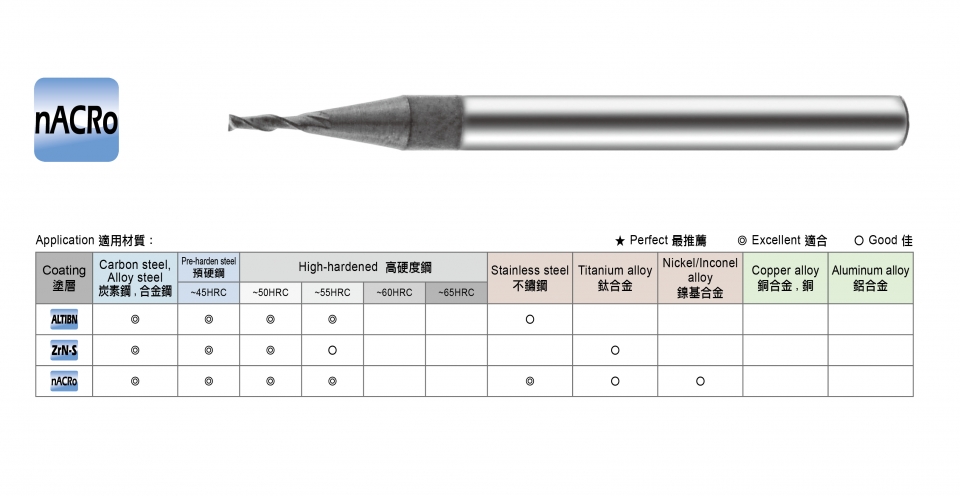

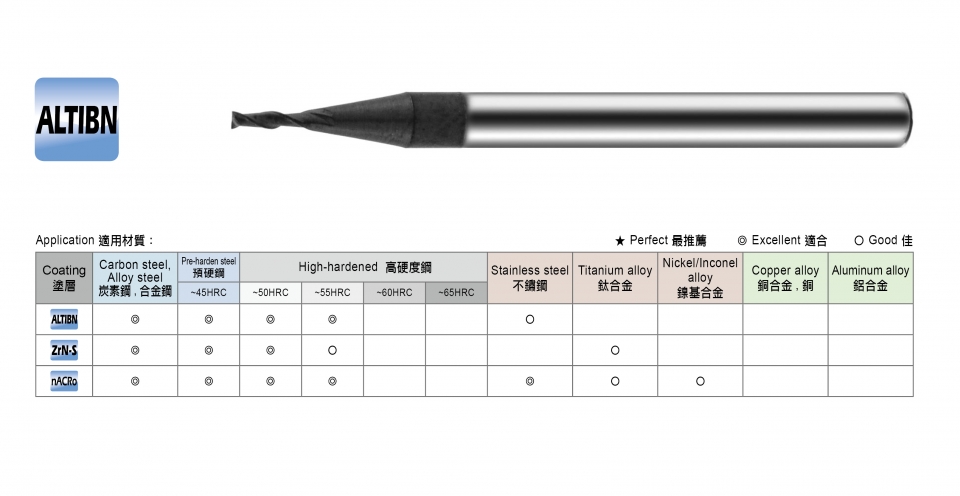

400 PLUS 奈米泛用系列,規格:0.2mm~3mm,塗層:ALTIBN / nACRo / ZrN-S
  • 詳細規格下載  Spec. Download
    切削參數下載 Cutting Condition Download


    400PLUS 奈米泛用系列  400PLUS Nano Series General Application

    適用材料: ~HRC60/ 鐵材 / 素碳鋼 / 鑄鐵 / 模具鋼 / 合金鋼 / 工具鋼 / 熱處理鋼 / 焊補鋼料
    Application:  ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel

    主要特性:極細微粒碳化鎢母材韌性高,被覆 n.B.S ,耐磨耗,非一般鈦鋁。專用於高速 M/C 高硬度高速切削,能對熱處理模具直接進行粗加工到細加工,減少換刀次數,提高機床稼動率,節省模具製作時程。
    Main Character: Ultra Fine Micro Grain Carbide that has high toughness, coating n.B.S and wear-resisting, non-general titanium aluminum is specialized in milling on M/C high hardness at a high speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.

    產品系列比較表 Comparison
    Series
    系列
    Grain Size
    粒徑大小
    Hardness
    硬度 (HRC)
    Coating
    塗層
    Application
    應用
    200Nano 0.2μm ~65 TiSiN Super Hard Hardness
    超高硬度應用
    400Nano 0.4μm ~60 nBS High Hardness
    高硬度應用
    600Nano 0.6μm ~50 AlTiN General
    一般泛用
